The story
Multiple frames and concepts have been introduced to the FPV market, but they all lack something.
The creation of this sophisticated model's main objective is to cover the missing pieces in all frames and what FPV freestyle pilots genuinely need from a frame.
The initial prototype was assembled in Dec 2021, passing through many modifications and reviews, resulting in a seamless freestyle frame.
Key parts

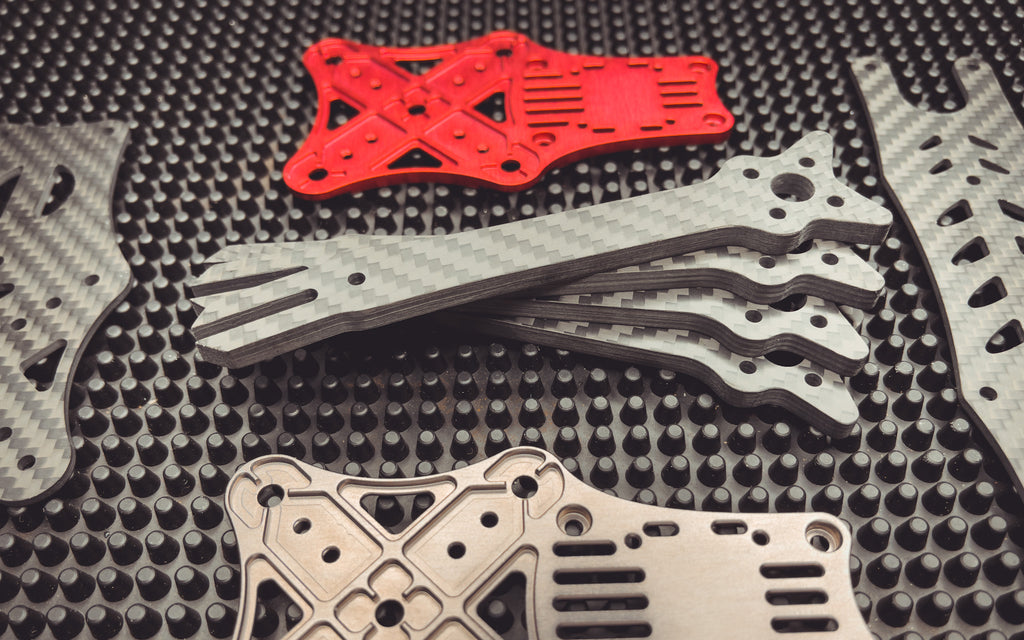

Aluminum Bottom Plate
With built in heat sink, this bottom plate dispose all the heat from the Video Transmitter mounted on it.
Mounting a Vista, or any analog Vtx
An aluminum bottom plate to keep your VTX cool.
20x20 and cable tie
20x20 Mounting openings to mount the Vista VTX, or using a cable tie through the specially designed openings to mount any VTX model you own.
Plenty of space !!
Easy TO Assemble
built around the well-known components, places are well-identified!
OUTSTANDING PREMIUM MATERIALS
5mm Cabron Fiber Arms
BUT WAIT, THERE IS MORE!
Other than being a lightweight and super-rigid frame, it also offers a lot of hidden features, that satisfy every FPV pilot's interest.
Check the slider below for more frame-related features.
one screw arm release
Quick hot swap for the arm by releasing one screw only, without the need of reaching to the FC/ESC screws

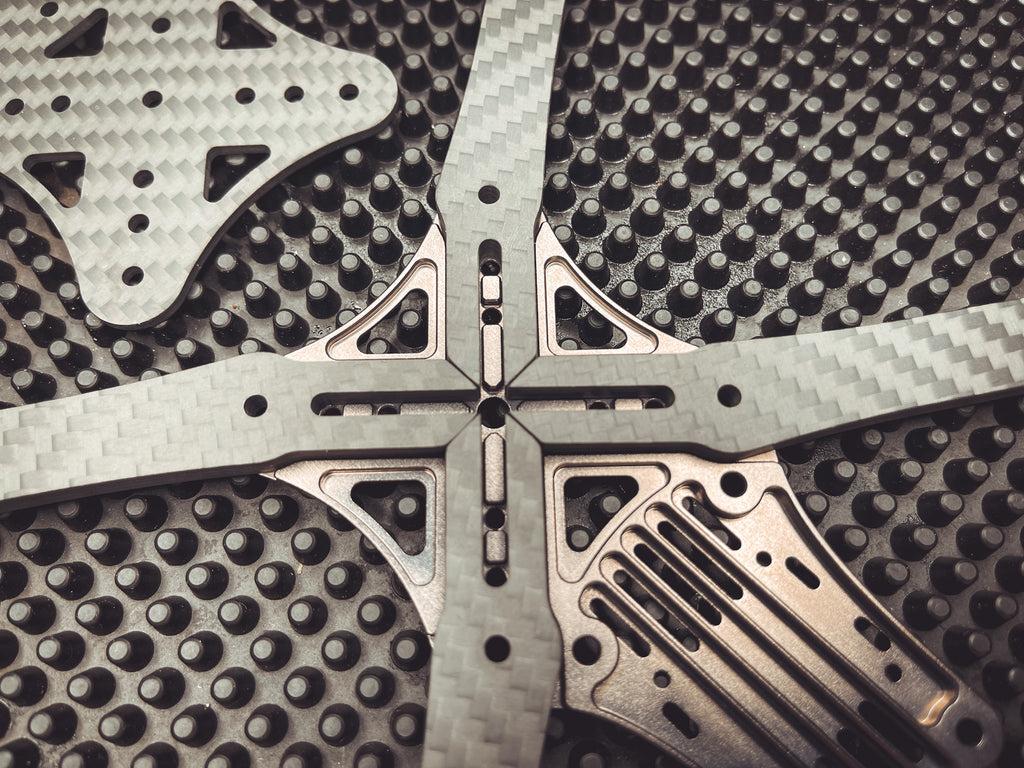

Special arms lock Mechanism
The aluminum plate holds a precise slot for the arms to slide, and lock into place
Threaded 30x30 FC/ESC Holes
for easy FC/ESC mounting, also with 20x20 M3 openings for lighter weight assembles
Video Antenna cable tie openings
Our frame offers openings for easy mounting using the zip-tieing the antenna to the top plate method. (OG style)
NOW AVAILABLE IN TWO VERSIONS !
What is air x edition ?
A fully loaded Hyperlite, with a stellar red bottom plate that looks ravishing on red 3D, printed Parts, and blue 3D printed Parts
ATTENTION:
For HD Caddx Vista builds, 12cm coax cable is needed
Immortal T and VTX antenna in the picture are not included
Introducing the Hyperlite Freerange 5'' LR Freestyle frame! This frame is a culmination of months of extensive testing by our team and our knowledge gained from years of racing. The main design follows the basic layout cues and engineering that have made Hyperlite frames one of the most widely used in the hobby.
As with other popular Hyperlite models, this frame centers around a CNC machined aluminum plate; however, as an added bonus it serves more than the standard purpose of providing rigidness to the frame. In this case, the plate was specifically designed for use with the Caddx Vista VTX (which is known to run hot), using integrated cooling fins to keep the temps down! Analog VTX's will benefit from the same feature, of course.
The "Squashed X" geometry of the frame was chosen to help keep props out of the view of your GoPro / Insta360 footage while delivering a smooth flight. If you are ripping in a nearby park or using FPV as a cinematic tool, this frame is the lightweight yet sturdy choice for any 5'' pilot.
FLY FREE AND STAY COOL IN STYLE WITH THE HYPERLITE FREERANGE!
HIGHLIGHTS:Compatible with 20*20 and 30*30 StacksAluminum main plate with integrated cooling fins for VTXSquashed X Geometry to keep props out of HD footage viewIncludes TPU cam mount and Antenna mount (Tube style like Caddx)Machined channels in the aluminum plate prevents arm wiggle5mm thick and 12mm wide durable armsThreaded stack screw holes on the aluminum plateMiddle front standoff to provide rigidity to top plateIncludes Caddx Vista mounting M2 hardwareWeight: 108 grams without tpu accessories / 112-114g with tpu cam and antenna mountBUILDING TIPS:For HD Caddx Vista builds, 12cm coax cable is neededFor TBS Nano RX builds with front mount antenna ,if the receiver is mounted on top of the stack an extended Immortal T Antenna is needed.PACKAGE INCLUDES:1 x Hyperlite Freerange 5" Freestyle HD FrameCaddx Vista Antenna HolderImmortal T front holderFPV Cam Holder
NOT A FAN of airX Red?
want to have control ?
We offer you a variety of colors to customize your drone and the option of printing your parts with your own set of colors that go along the space grey bottom plate.
ATTENTION:
For HD Caddx Vista builds, 12cm coax cable is needed
Arms Protectors, Immortal T and VTX antenna in the picture are not includedSince bottom plate is BLACK, you can customize your frame with 3D printed parts colors we have!
Introducing the Hyperlite Freerange 5'' LR Freestyle frame! This frame is a culmination of months of extensive testing by our team and our knowledge gained from years of racing. The main design follows the basic layout cues and engineering that have made Hyperlite frames one of the most widely used in the hobby.
As with other popular Hyperlite models, this frame centers around a CNC machined aluminum plate; however, as an added bonus it serves more than the standard purpose of providing rigidness to the frame. In this case, the plate was specifically designed for use with the Caddx Vista VTX (which is known to run hot), using integrated cooling fins to keep the temps down! Analog VTX's will benefit from the same feature, of course.
The "Squashed X" geometry of the frame was chosen to help keep props out of the view of your GoPro / Insta360 footage while delivering a smooth flight. If you are ripping in a nearby park or using FPV as a cinematic tool, this frame is the lightweight yet sturdy choice for any 5'' pilot.
FLY FREE AND STAY COOL IN STYLE WITH THE HYPERLITE FREERANGE!
HIGHLIGHTS:Compatible with 20*20 and 30*30 StacksAluminum main plate with integrated cooling fins for VTXSquashed X Geometry to keep props out of HD footage viewIncludes TPU cam mount and Antenna mount (Tube style like Caddx)Machined channels in the aluminum plate prevents arm wiggle5mm thick and 12mm wide durable armsThreaded stack screw holes on the aluminum plateMiddle front standoff to provide rigidity to top plateIncludes Caddx Vista mounting M2 hardwareWeight: 108 grams without tpu accessories / 112-114g with tpu cam and antenna mountBUILDING TIPS:For HD Caddx Vista builds, 12cm coax cable is neededFor TBS Nano RX builds with front mount antenna ,if the receiver is mounted on top of the stack an extended Immortal T Antenna is needed.PACKAGE INCLUDES:1 x Hyperlite Freerange 5" Freestyle HD FrameCaddx Vista Antenna HolderImmortal T front holderFPV Cam Holder
